LYNCCN WAY100.86-V12 Euro Hydraulic Press Brake Tooling Die 86 Angle 42CrMo
| Place of Origin | Anhui, China |
|---|---|
| ブランド名 | LYNCCN |
| 証明 | ISO9001 |
| Model Number | WAY100.86 |
| Minimum Order Quantity | 835mm*3pcs |
| 価格 | 交渉可能 |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Product Name | WAY100.86 V12 Hydraulic Press Brake Tooling 86 Angle Single V Die | V Opening | 12mm |
|---|---|---|---|
| Product Category | Press Brake Single V Die | Width | 25mm |
| Hardness | HRC48-52 | Height | 120mm |
| Material | 42CrMo | Angle | 86° |
| Packing | Wooden case | Application | Used for Press Brake, Industrial, Sheet Metal Bending |
| ハイライト | 42CrMo Hydraulic Press Brake,Euro Hydraulic Press Brake,LYNCCN Hydraulic Press Brake |
||
製品の説明
Press brake tooling dies are used in press brakes to bend sheet metal. They come in various shapes for different bend types. Common types include V-dies and U-dies.

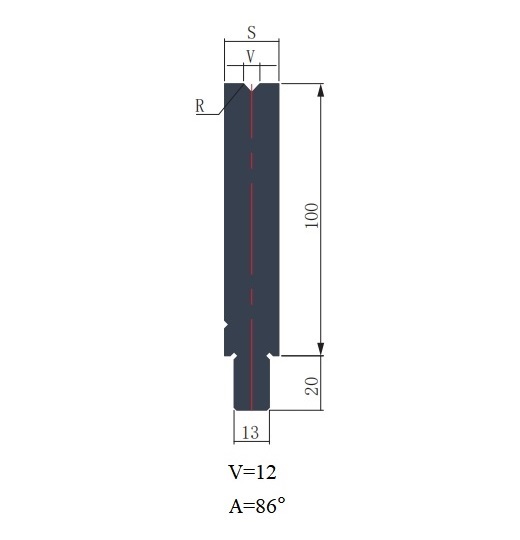

Technical Parameters:
| Product Type | Press Brake Single V Die |
| Brand | LYNCCN |
| V Opening | V12 |
| Angle | 86° |
| Length | 550mm/500mm |
| Width | 25mm |
| Height | 120mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling widely used in industrial machinery manufacturing. Forms machine covers, panels, and support brackets. Handles both thick and thin gauge steel.
